モータのエンクロジャーの種類

モータのカタログを見ていると、OPD とか、TEFC とか書いてあって、最初意味がわからなかったので、整理しておきたいと思います。

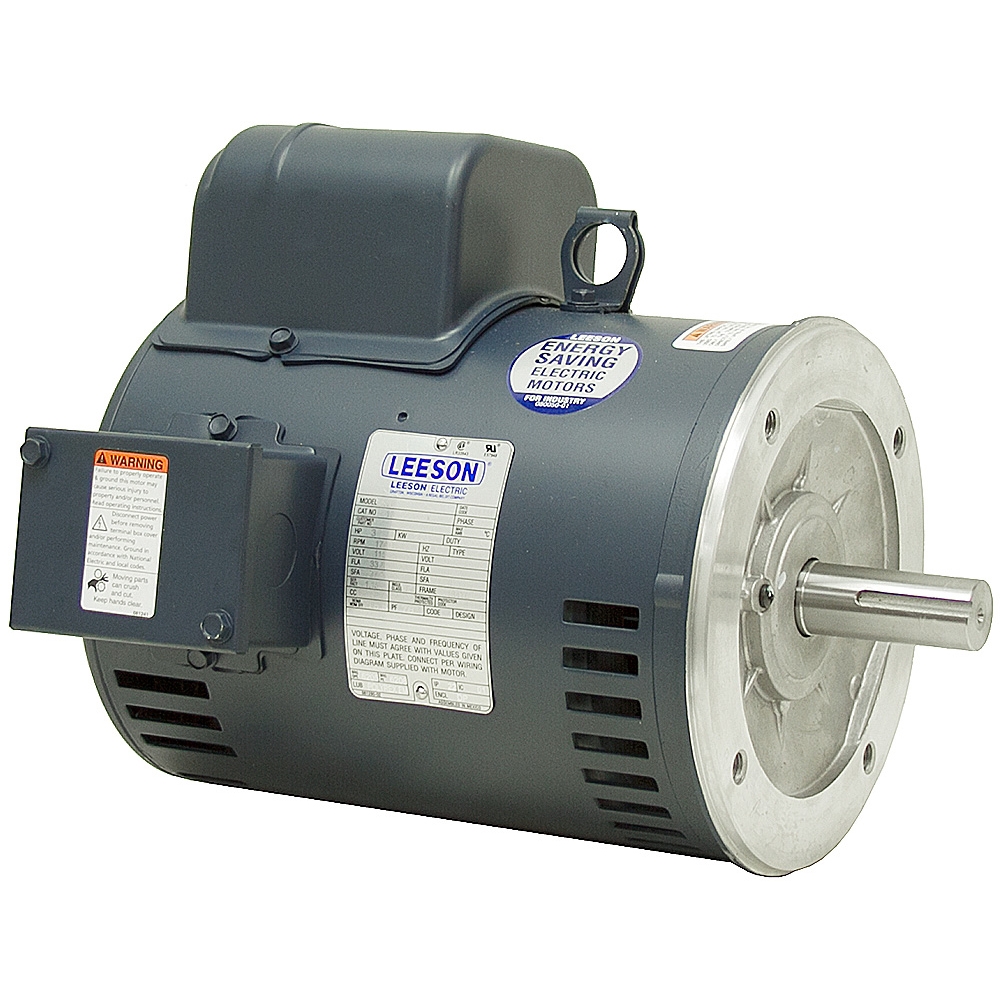

  • ODP (Open Drip Proof) – Motors with open enclosures, typically used in clean, non hazardous areas. Vents are designed to prevent liquids and debris from entering the motor from an angle of 0 to 15°.

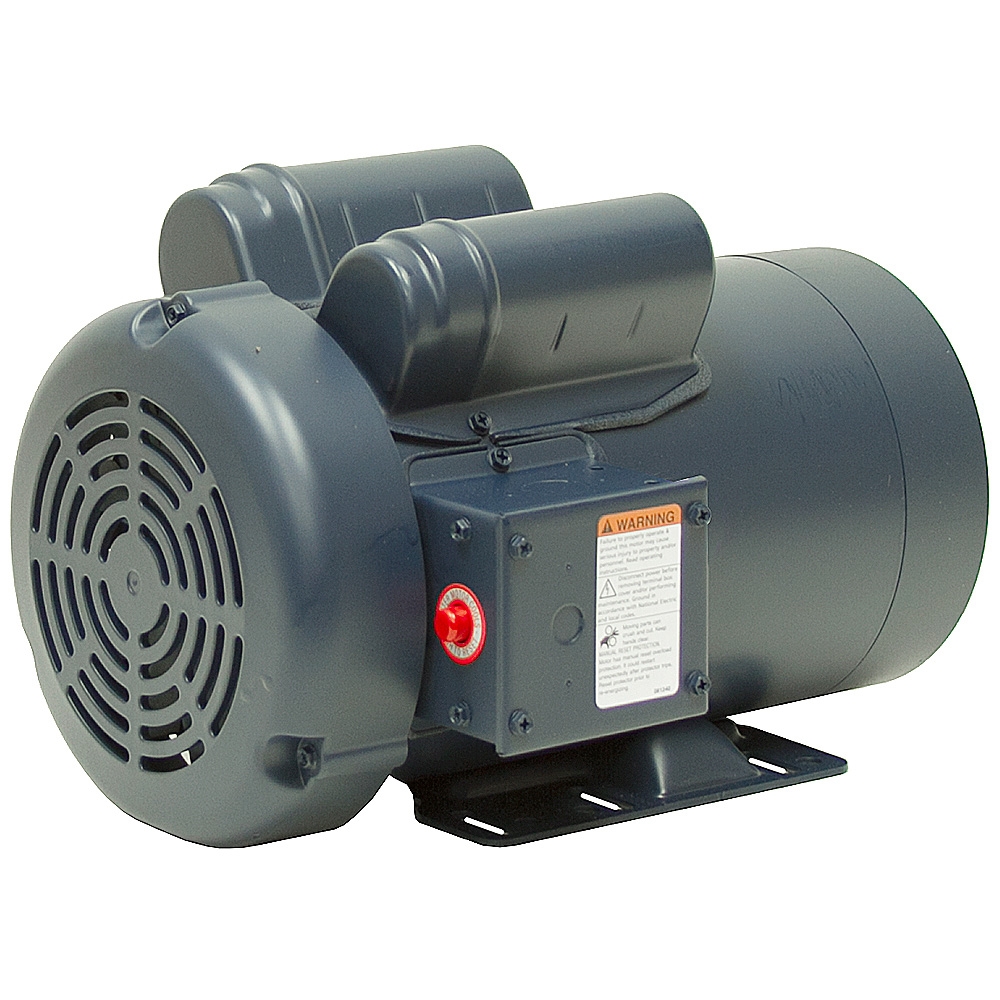

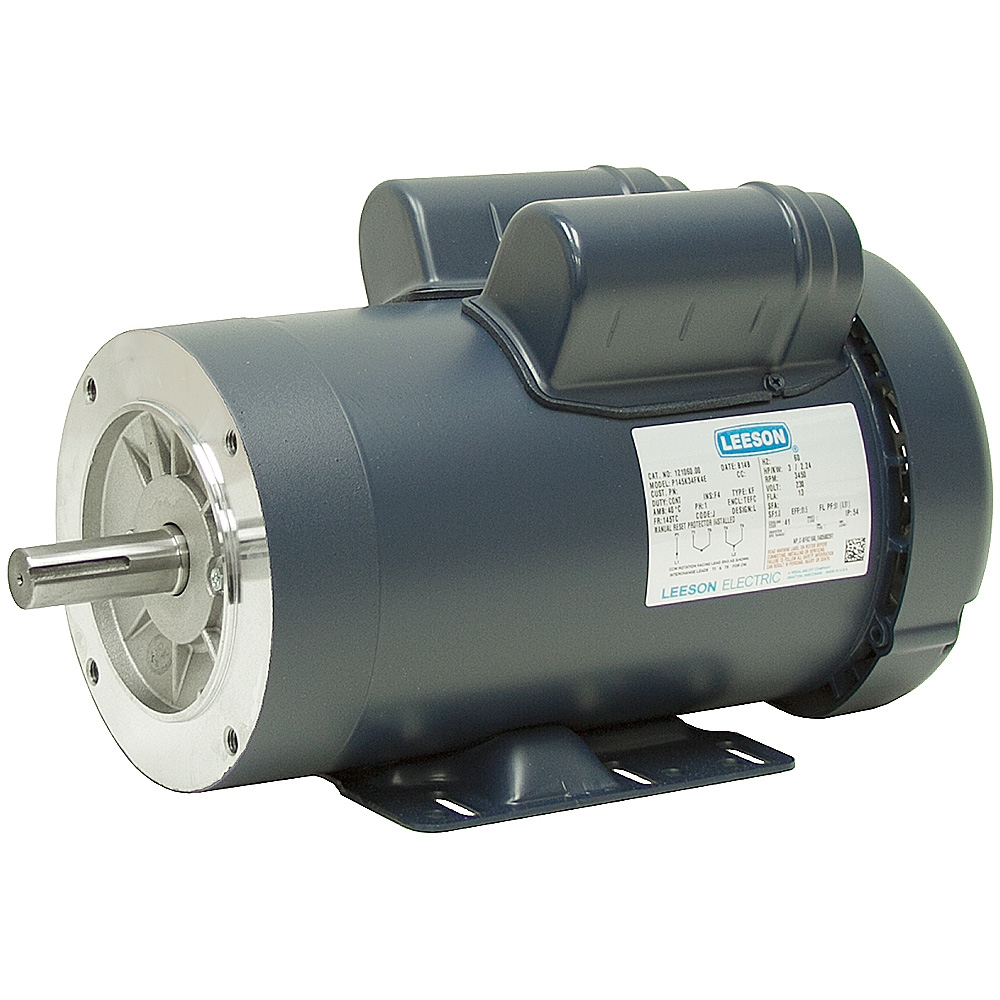

  • TEFC (Totally Enclosed Fan Cooled) = Motor with a small fan on the rear shaft of the motor. Typically used in very wet, dirty or dusty areas.
  • TEAO (Totally Enclosed Air Over) – Motor with dust-tight enclosure and an aerodynamic design. This type of motor is desined to allow the air flow of the fan/blower keep the motor cool.

  • TENV (Totally Enclosed, Not Ventilated) – Motor with a dust-tight, enclosure with no air vents. These small hp motors are cooled by convection to the frame.

  • XPRF (Explosion Proof) -Motors designed to withstand an internal explosion of gas or vapor. If such an explosion happens, the gas/vapor will not ignite.

というわけですから、薪割り機のように、埃っぽい作業をし、あるいは下手をすれば屋外などで使用する場合、ODP ではなく TEFC を選択する必要があると思います。

TEFC はファンがあるのですが、場合によっては、ファンがないほうがいいこともあるかもしれないのですが、TEAO はファンを駆動するモータなど、空気が流れる環境で使うものですし、TENV はケースからの放熱のみで冷却するため出力の大きなものがない、という問題があるようです。
